No screen

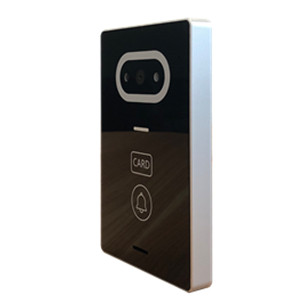

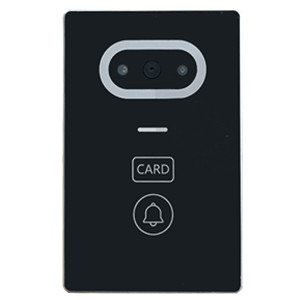

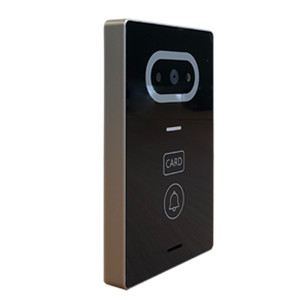

Face recognition access control unit
STD-5MB0011-BC
It is suitable for office areas, hotels, office buildings, banks, hospitals, schools, shopping malls, shops, communities, public services and management projects and other places that require facial access control.
Product highlights
  • Product Description
  • Product Parameters
  • Product Size
  • Data download


Core functions

l  EmbeddedLinuxoperatingSystem, safe and stable operation

l  High performance with low power consumptionprocessor,equipment operationLow power consumption and less heat

l  Embedded in the industry's leading deep learning face recognition algorithm,Face recognition rate>99%, false recognition rate<1%

l  Support super smart wide dynamic,Fearless to strong light, backlight and low light, adapt to various complex light scenes

l  Support the largest face recognition mode, support face optimization, face enhancement and face exposure, improve image quality

l  Support the recognition distance control of 0.3~2M, which can effectively prevent the misrecognition of people who are far away

l  Support live detection function, effectively solve the deception problem of photos, videos, etc.

l  Standard1Ten thousand face database,1Wan Zhangkaku, 50,000 records storage

l  Accurate and rapid identification and comparison in milliseconds,Face recognition speed (1:N)≤0.2S/people

l  Support multiple verification modes of face, IC card, ID card physical card number, face + swipe card, And support the customization and expansion of verification methods

l  Optional face recognition wake-up function to avoid unwilling recognition of whitelisted persons

l  Industrial design,Not afraid of high temperature and severe cold,Adapt to temperature range-20℃60℃,Suitable for indoor all-weather scenes

basic skills

l  2 million 1/2.7 inch CMOS image sensor, good low illumination effect, high image definition

l  HD fixed focus 4mm&F2.2 aperture security grade industrial lens, anti-backlight

l  Support screen automatic sleep,Automatically sense the human body, quickly turn on the fill light, and wake up the face recognition working mode;

l  Support online/offline working mode, equipped with 100M Ethernet port, optionalWIFIWireless connections

l  Indoor wall installation, support 86 boxes embedded in the wall installation, beautiful and seamless installation

l  Anti-surge, anti-static, lightning protection design, Set up tamper switch

l  Provide comprehensive secondary development technical support


basic information

product name

Face recognition access control unit

Device model

STD-5MB0011-BC

operating system

EmbeddedLinux system

camera

Resolution

200WPixel (1920×1080)

sensor

1/2.7 inch low illumination CMOS sensor

Lens

HD fixed focus4mm&apertureF2.2

White balance

Automatic, low color temperature, high   color temperature, manual

Wide dynamic

Digital wide dynamicWith real wide dynamics

Fill light

White light fill light

Smart   function

Detectangle

Vertical viewing angle:90Degree, horizontal   viewing angle:53degree

Intelligent   detection

Maximum face detection

storage

10,000 face base library, 10,000 card library,5Ten   thousand records storage

Accurate recognition

Recognition speed≤0.2S/Person, recognition accuracy≥99.99%

Recognition distance

0.3M-2.0MAdjustable

Live detection

stand by

Recognition mode

Brush face, brush ICCard, ID card physical   card number, face + swipe card combination

parameter settings

Black and white list,Identification   parameters, image settings, information display,

Alarm management

Blacklist alarm, door overtime not closed   alarm

Operating mode

Support online and offline work

Touch button

Face recognition wake-up function

Rich interface

communication   method

wired

Network   Interface

1A10/100M   network adaptive, RJ45interface

Door lock interface

Door opening signal, door sensor status,   switch button

Serial interface

1ARS232Serial   port

Wiegand interface

3root(D0,D1,GND) Support Wiegand26,34

Reset interface

stand by

Alarm interface

1 alarm input,2Alarm output

audio port

Built-in speaker

Tamper switch

stand by

Platform Agreement

Active registration, SDK,WebSocket, HTTP

General parameters

Power supply

DV12±20%

Power consumption

≤10W

working environment

Indoor   work, temperature:-20℃~60℃    humidity:10~90%RH

Protection level

IP42Protection level, air pressure 86kPa106kPa, antistatic: contact±6KV,air±8KV

Installation method

Wall-mounted installation, 86Box   installation

size(mm)

140(L)*90(W)*14.2(H) mm

weight

About   1.0kg
